Description
S&W Performance Group DOES NOT RECOMMEND .120″ Wall Thickness DOM Tubing for Drag Racing Applications.
.120″ wall is too close to .118″ wall mild steel NHRA & IHRA minimum specifications
Made in USA by S&W Performance Group with the Highest Quality Craftsmanship. S&W Performance Group roll bars & roll cages perform both a safety and performance function.
As a safety device, the main hoop of the cage protects the driver from impact. The rear braces and side bars tie the main hoop and chassis together to strengthen the car.
From a performance standpoint, the cage will improve your car's traction. Performance will also be greatly enhanced reducing chassis flex and increase the useful life of your car.
8-Point Roll Bar
1-3/4″ Diameter x .120 Wall Thickness
DOM Mild Steel Tubing

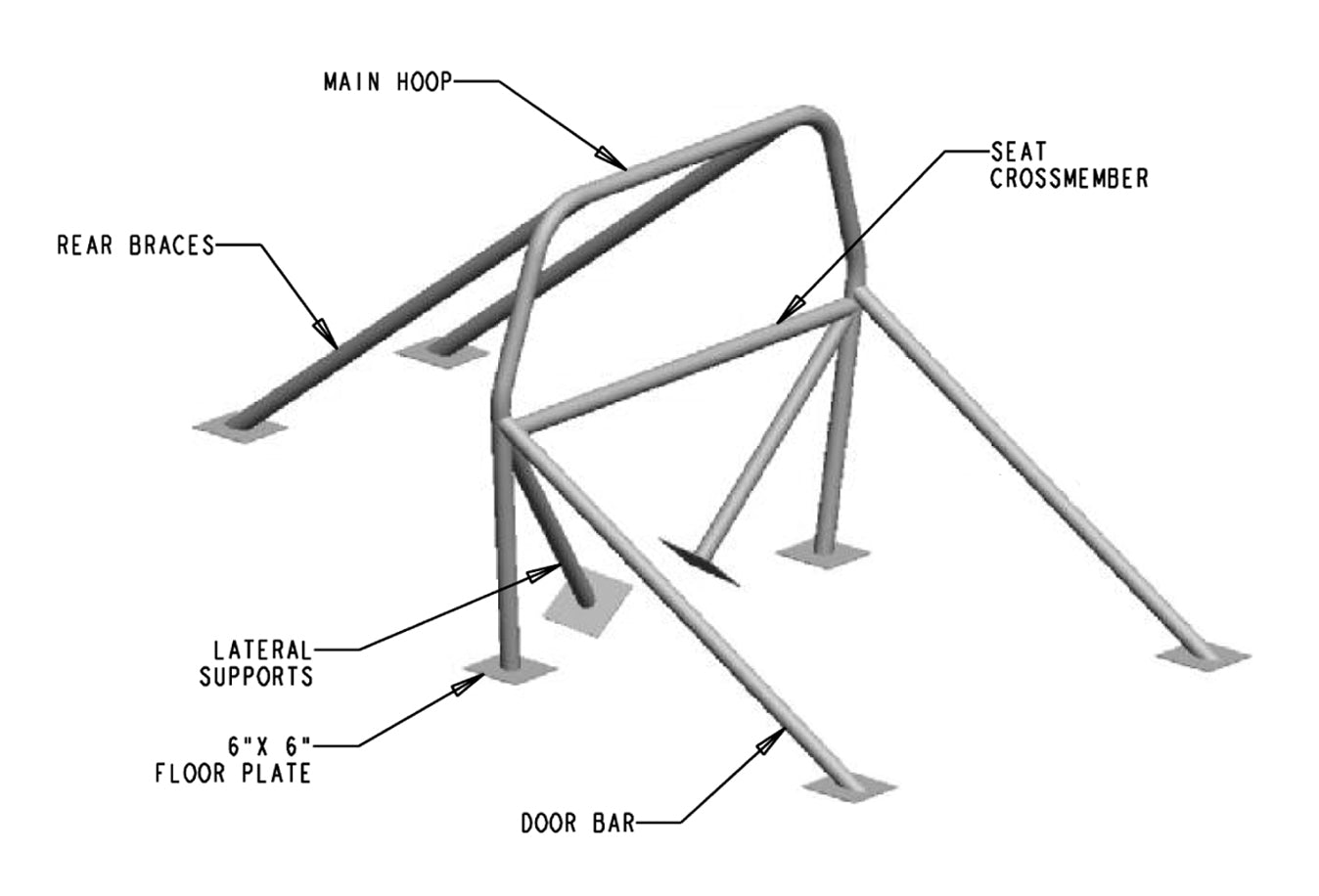

Includes
- Main Hoop
- Rear Braces
- Lateral supports
- Seat Crossmember
- Door Bars
- 6″ x 6″ 1/8″ plates
- All tubes are notched
- Photos are for clarification purpose only
Installation
S&W Performance Group Roll Bars & Roll Cages Feature Notched Tube Ends for Ease of Installation.
It is the installers responsibility to assure that the bar or cage is installed to meet the race organizations rules as to fit or placement of components and the welding process.
Specifications
| For Make | Chevrolet |
|---|---|
| For Model | Coupe |
| For Year | 1947 |
