Description
Made in USA by S&W Performance Group with the Highest Quality Craftsmanship. S&W Performance Group Recommends EWS (Electric Welded Seam) Mild Steel Tubing for Drag Racing.
NHRA & IHRA APPROVED 10.00 seconds 1/4 mile e.t. and slower
S&W Performance Group roll bars & roll cages perform both a safety and performance function.
As a safety device, the main hoop of the cage protects the driver from impact. The rear braces and side bars tie the main hoop and chassis together to strengthen the car.
From a performance standpoint, the cage will improve your car's traction. Performance will also be greatly enhanced reducing chassis flex and increase the useful life of your car.

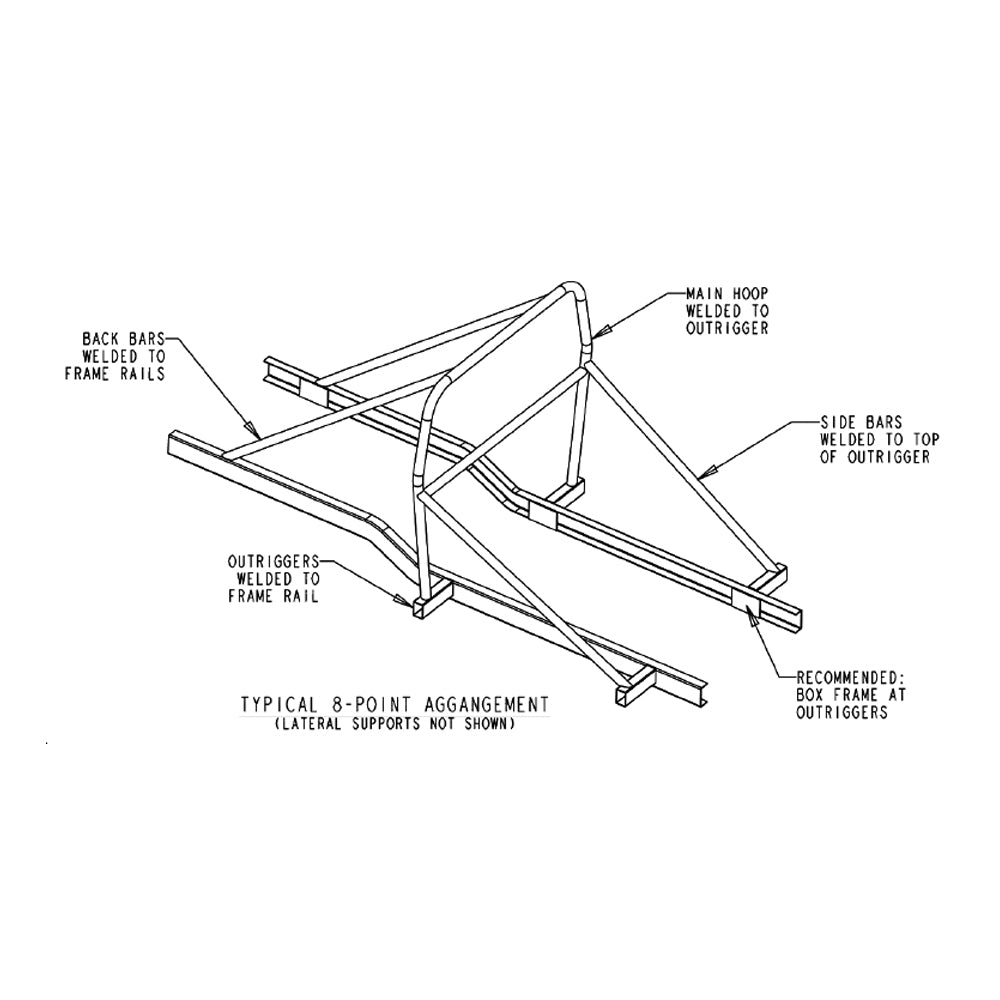

8-Point Roll Bar
1-3/4″ Diameter x .134 Wall Thickness
EWS (Electric Welded Seam) Mild Steel Tubing
Includes
- Main Hoop
- Rear Braces
- Lateral supports
- Seat Crossmember
- Door Bars
- 6″ x 6″ 1/8″ plates
- All tubes are notched
- Photos are for clarification purpose only
Installation
S&W Performance Group Roll Bars & Roll Cages Feature Notched Tube Ends for Ease of Installation.
For electronic welded seam (EWS) mild steel roll bar or roll cage we recommend MIG welding.
It is the installers responsibility to assure that the bar or cage is installed to meet the race organizations rules as to fit or placement of components and the welding process.
Specifications
| For Make | Studabaker |
|---|---|
| For Model | Commander |
| For Year | 1954 |
