Description
Made in USA by S&W Performance Group with the Highest Quality Craftsmanship. S&W Performance Group Recommends 4130 Chromoly Steel Tubing for Drag Racing.
NHRA & IHRA APPROVED 8.50 seconds 1/4 mile e.t. and slower
S&W Performance Group roll bars & roll cages perform both a safety and performance function. Designed by our engineers with high quality chromoly tubing to be both lighter and stronger.
As a safety device, the main hoop of the cage protects the driver from impact. The rear braces and side bars tie the main hoop and chassis together to strengthen the car.
From a performance standpoint, the cage will improve your car's traction. Performance will also be greatly enhanced reducing chassis flex and increase the useful life of your car.

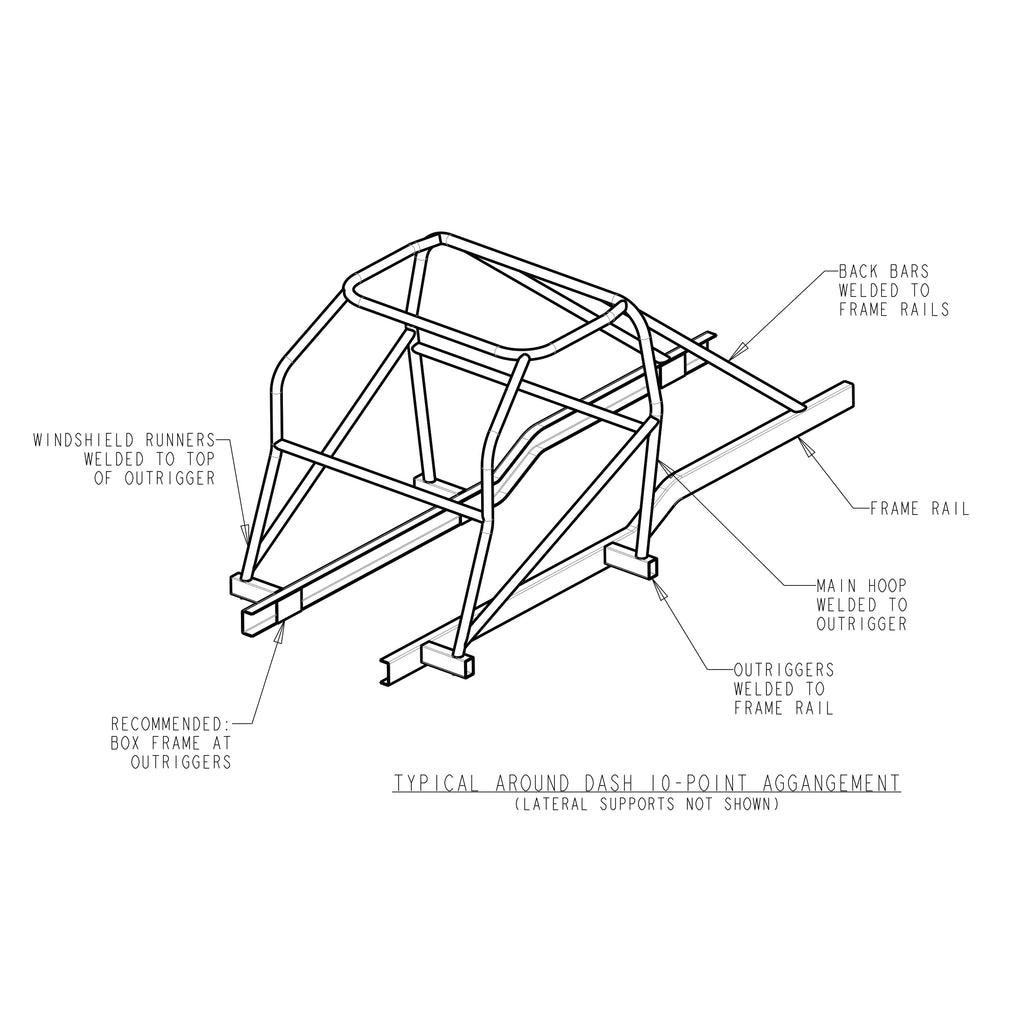

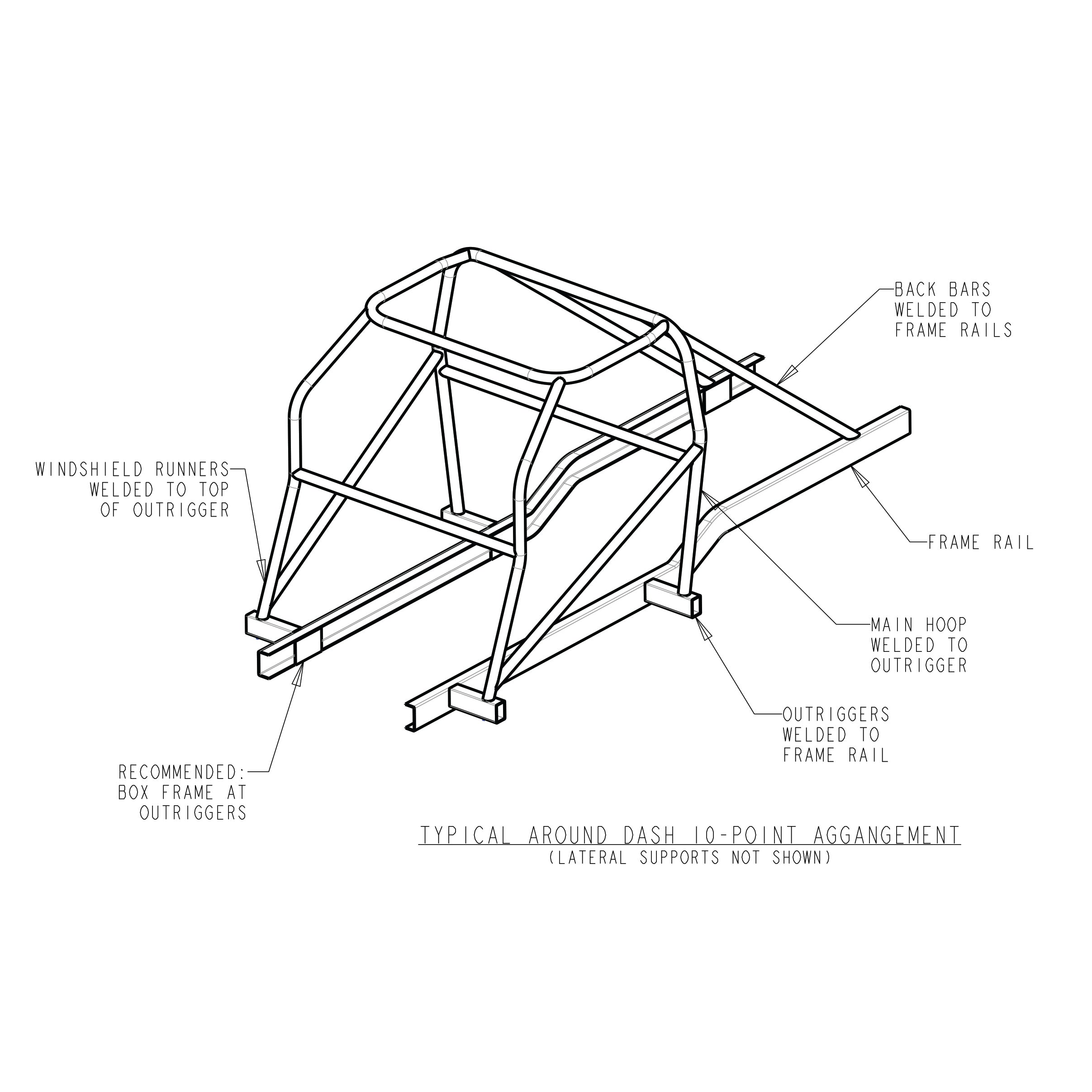

10 Point Roll Cage
1-5/8″ Diameter x .083 Wall Thickness
4130 Chromoly Steel Tubing
Includes
- Main Hoop
- Roof Hoop
- Rear Braces
- Lateral supports
- Seat Crossmember
- Door Bars
- Windshield Bars
- Dash Bar
- 6″ x 6″ 1/8″ plates
Many tubes are notched, roof hoop, windshield bars and dash bar are not notched to allow the installer to make adjustments.
Photos are for clarification purpose only.
Installation
S&W Performance Group Roll Bars & Roll Cages Feature Notched Tube Ends for Ease of Installation.
Sanctioning body rules require that every chromoly roll bar or roll cage be TIG welded.
It is the installers responsibility to assure that the bar or cage is installed to meet the race organizations rules as to fit or placement of components and the welding process.
Specifications
| For Make | Ford |
|---|---|
| For Model | Ranger |
| For Year | 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, and 2011 |
