80" Tubular Wheelie Bar Kit Unwelded

Part# 40-347U

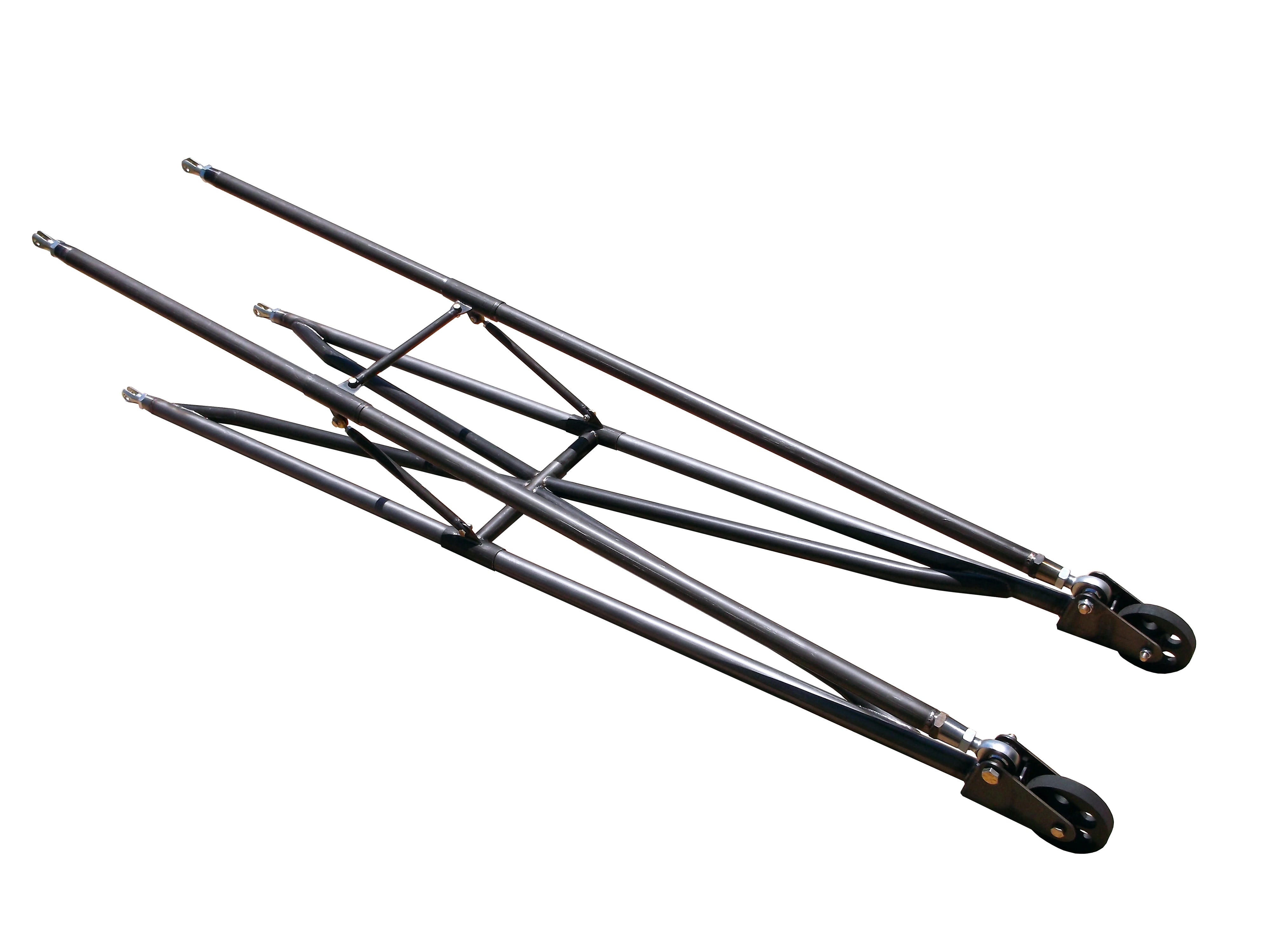

The Hi-Po wheelie bar is purpose built for powerful and demanding drag race cars. The slip-tube construction bar features a floating “X-Member” on the lower struts, which will help tune “hit” of wheelie bars besides the wheel height. Maximum length is 80″ and Maximum width is 28″ Both length and width can be narrowed to suit the racers needs. Upper Lower struts are made of 1-1/4” x.065 Chromoly. Crossmember is 1-1/8″ x .065″ Chromoly. Kit include: Housing Brackets to fit 3” axle tubes (Brackets for rear with back brace available,) Chromoly Rod Ends, Hardware and SW’s red wheels with bearing. (picture shown is welded kit)

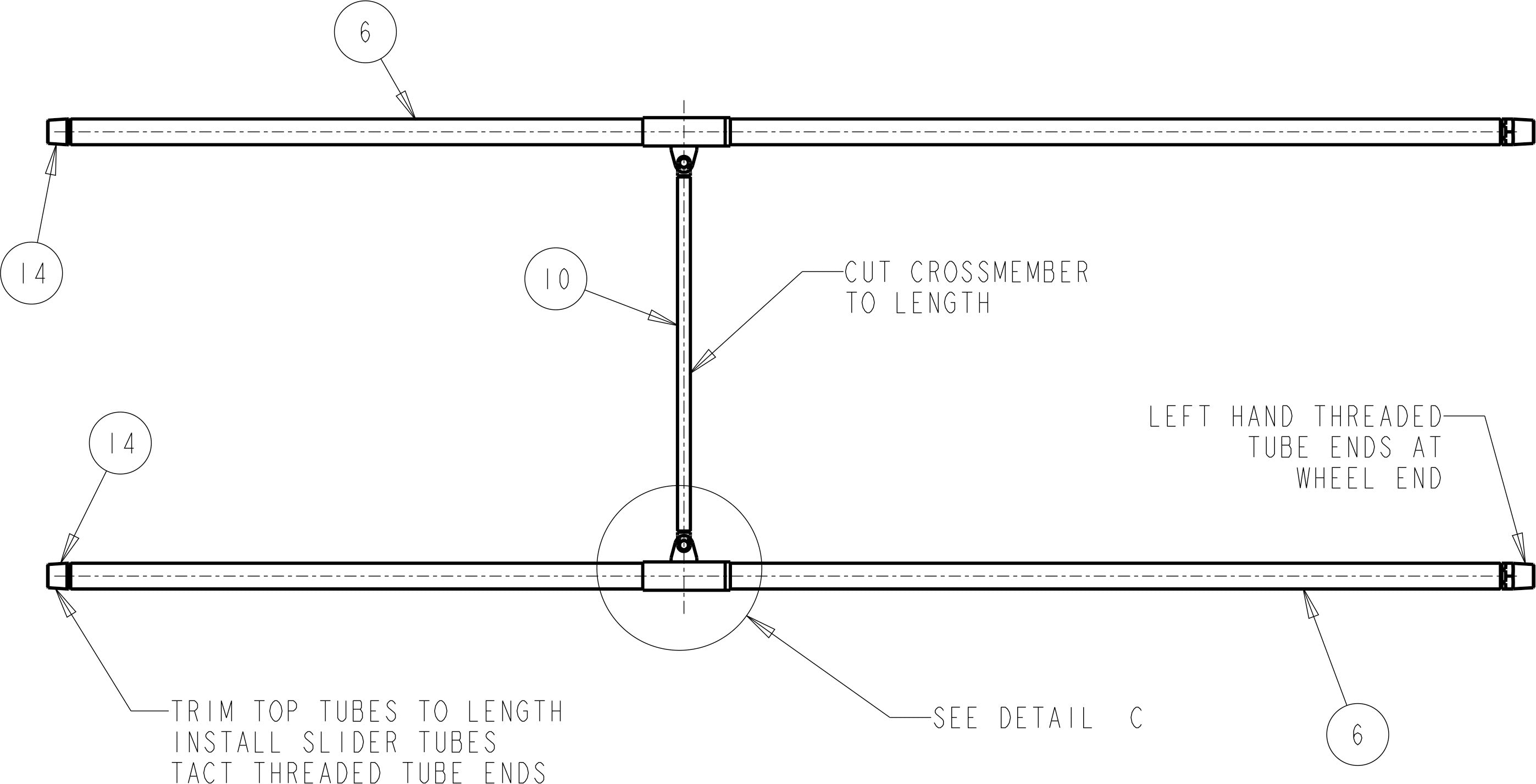

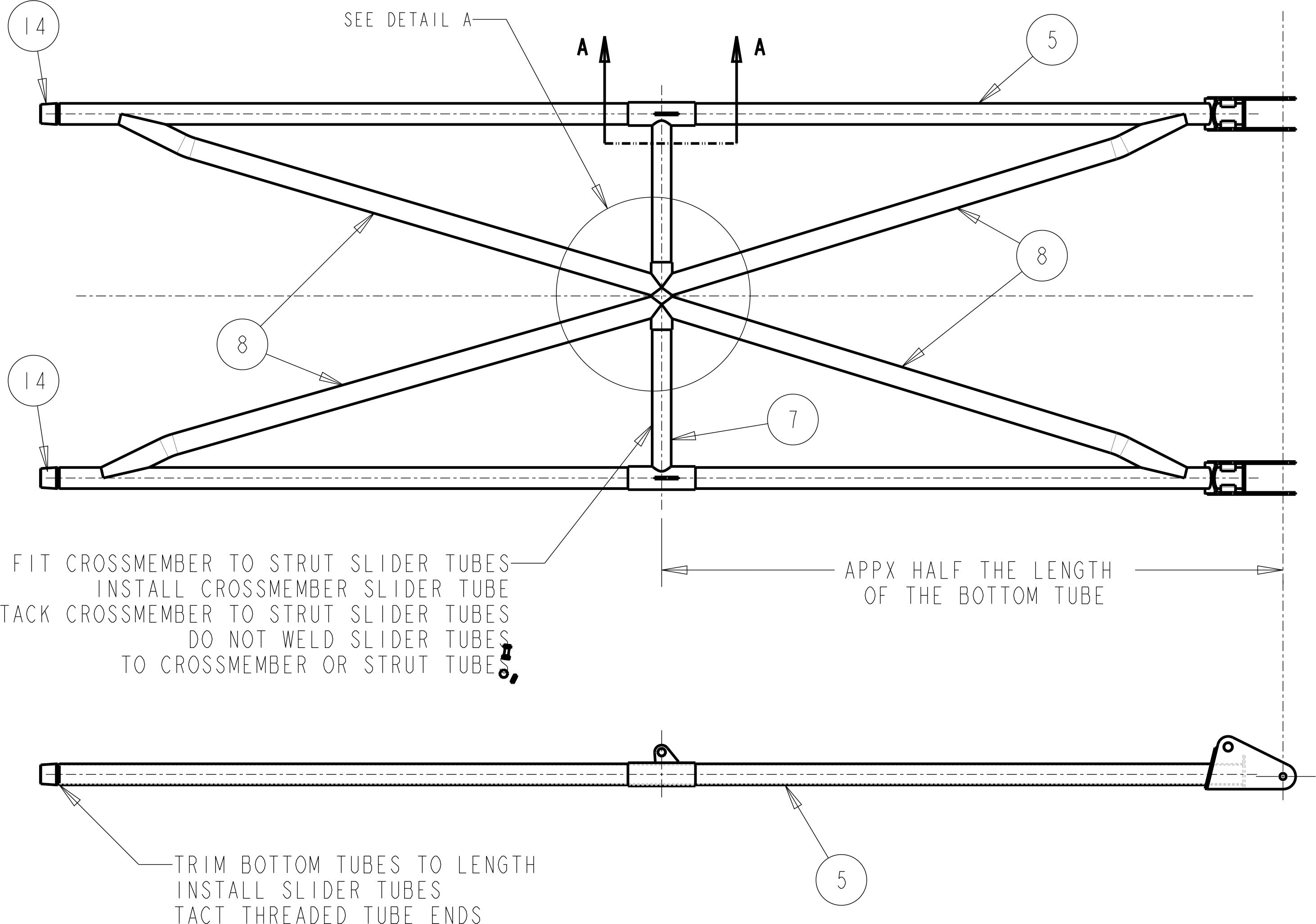

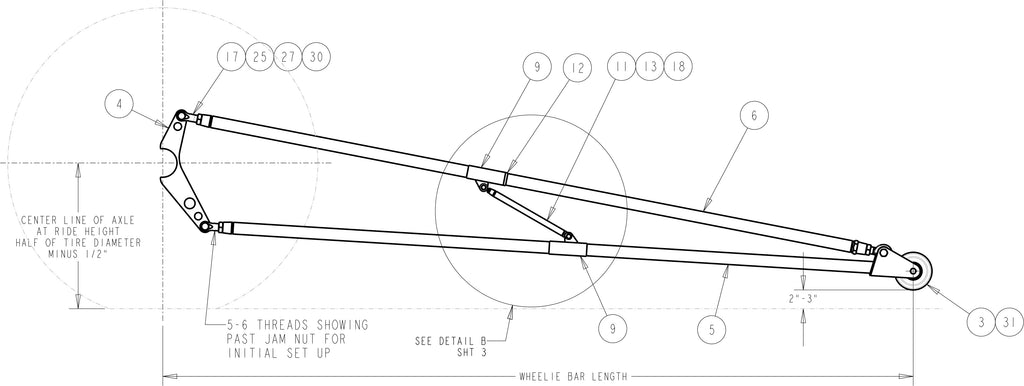

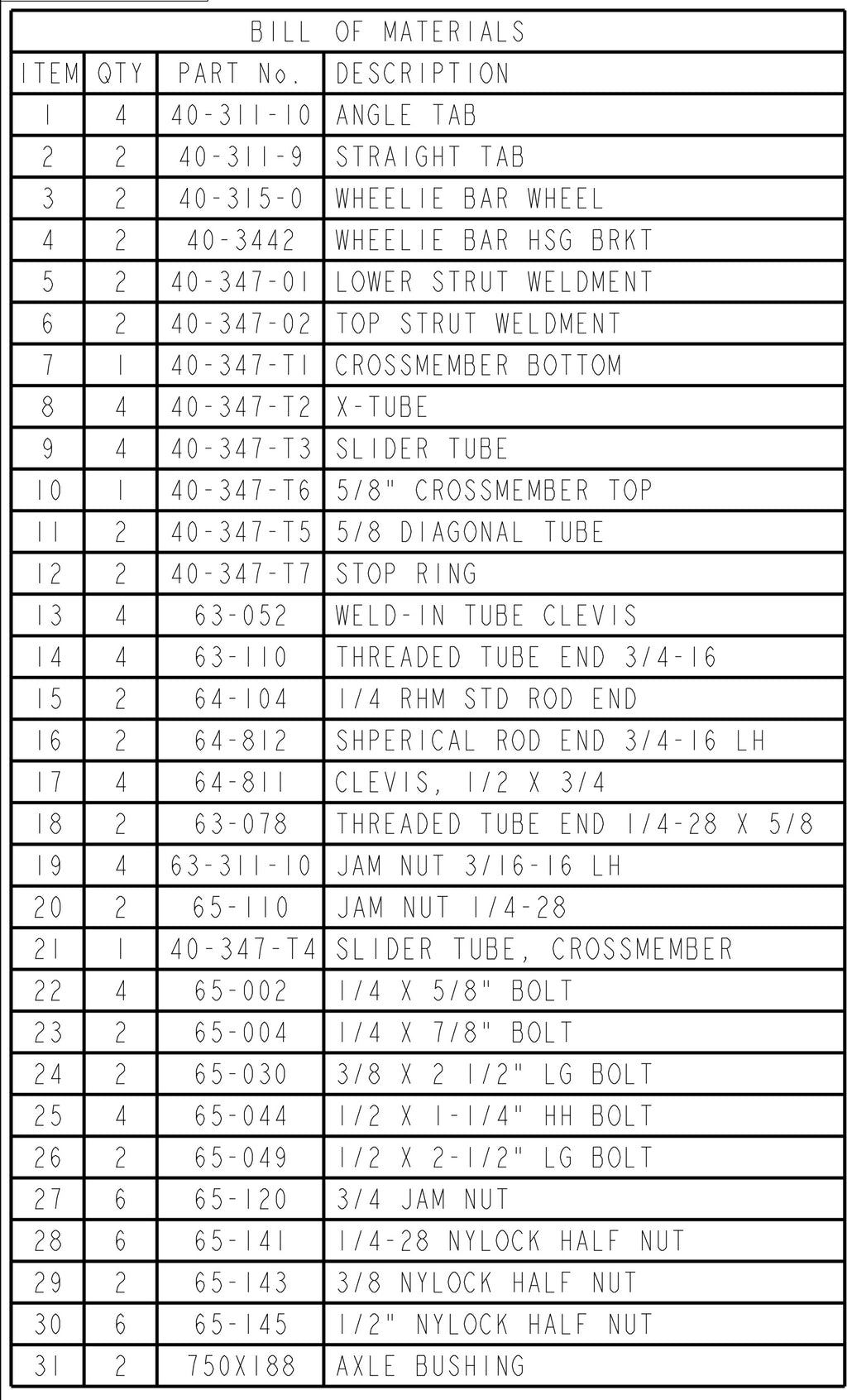

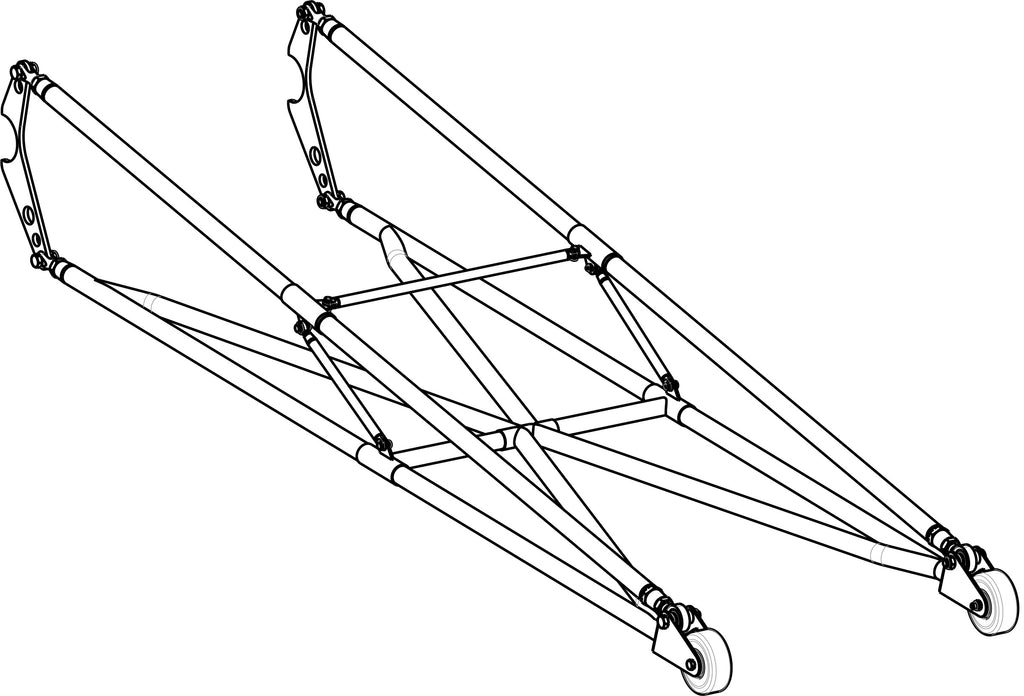

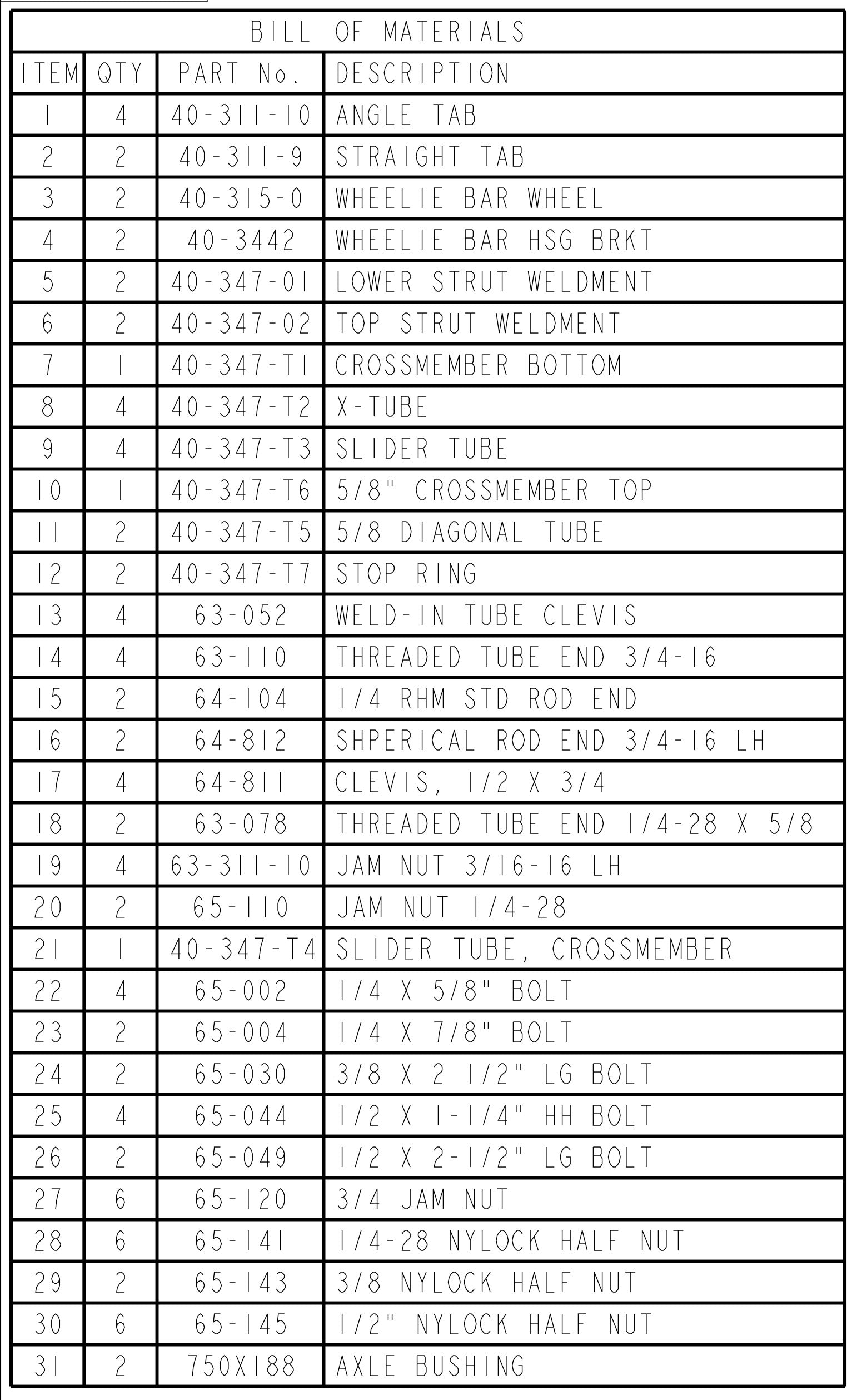

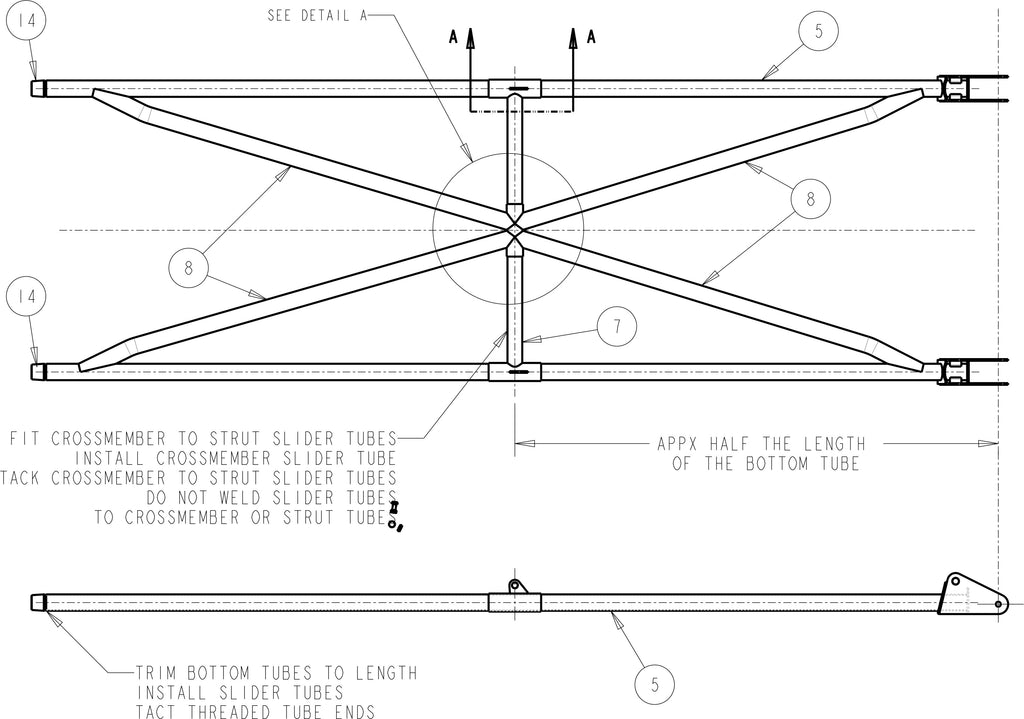

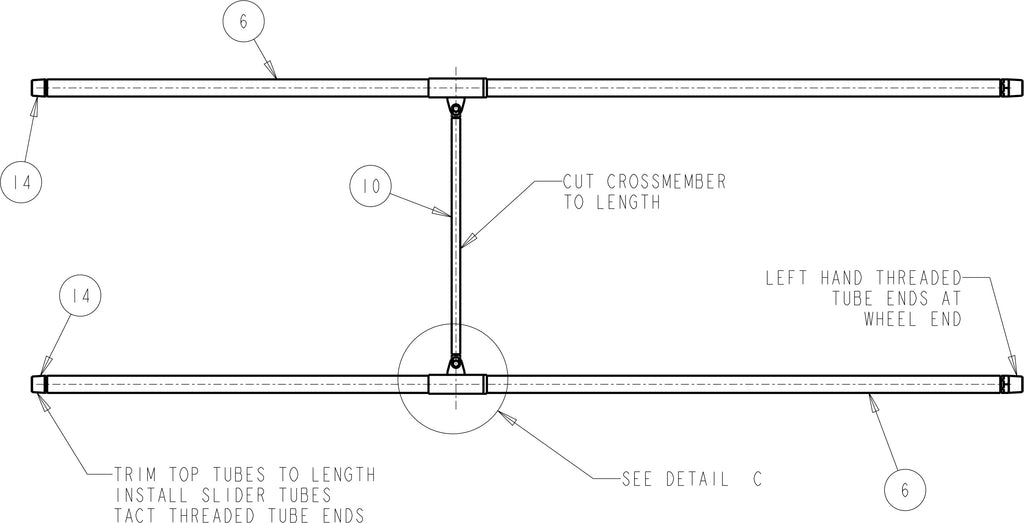

40-347 & 40-347U instructions
