Description
Includes
- Mounting Tabs
- Brackets
- Hardware
Chromoly tubing, steel bushing sleeves, 38″ maximum width from frame to pivot on rear.

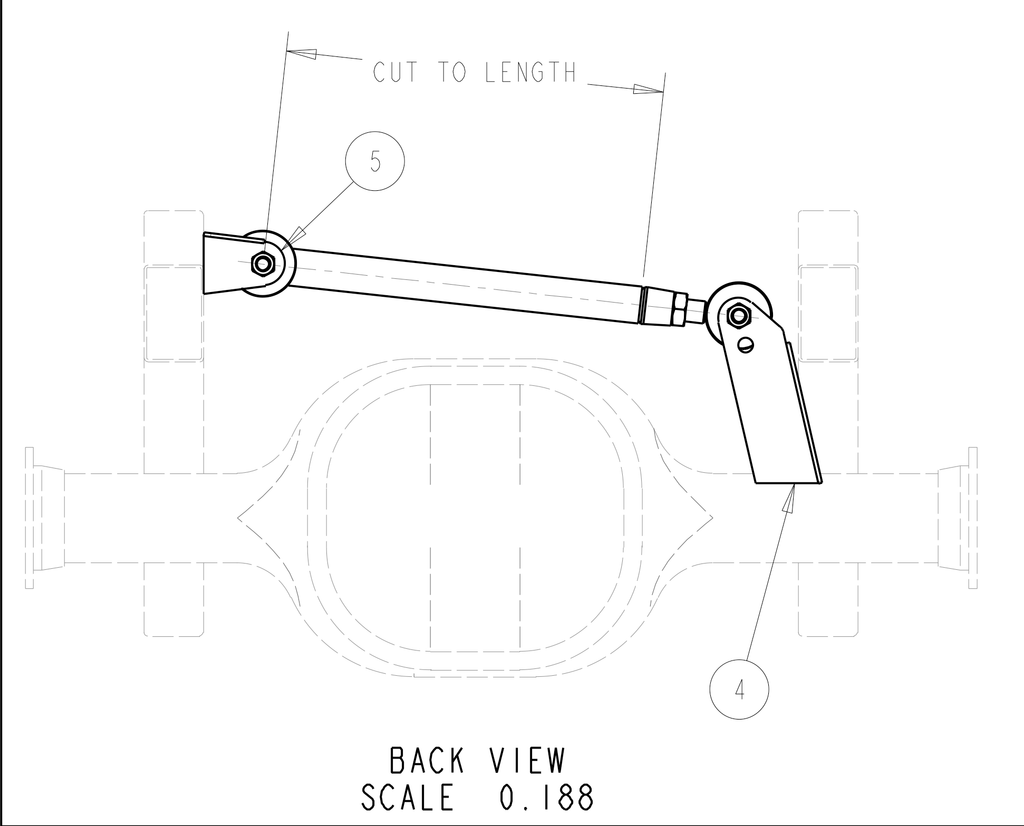

Customer to cut and weld to required length.

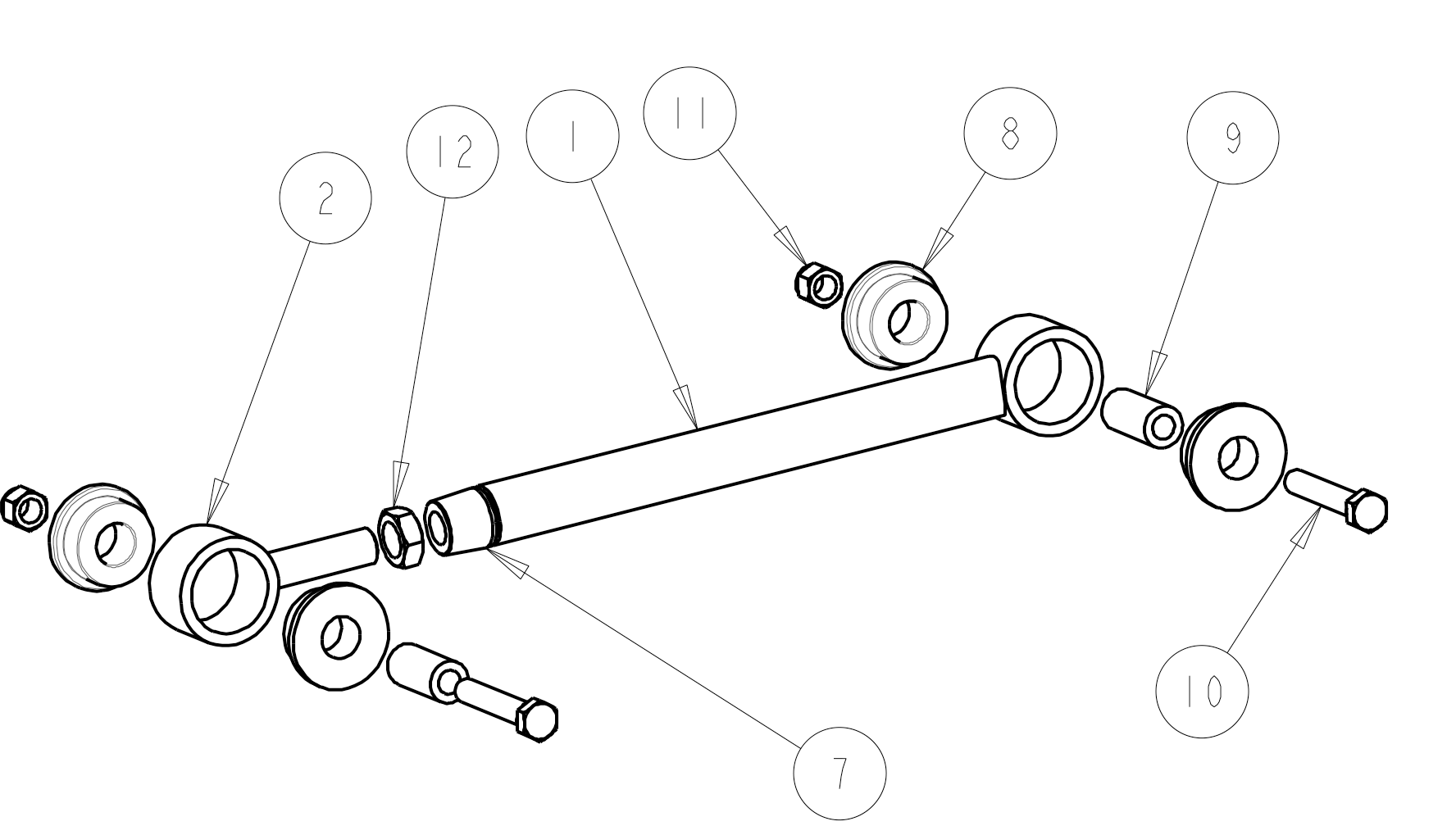

Bill of Materials
| Item |
Qty |
Part Number |
Description |
| 1 |
1 |
40-129-01 |
Panhard Bar Weldment |
| 2 |
1 |
40-129-02 |
Link Adjuster Weldment |
| 3 |
1 |
40-129-03 |

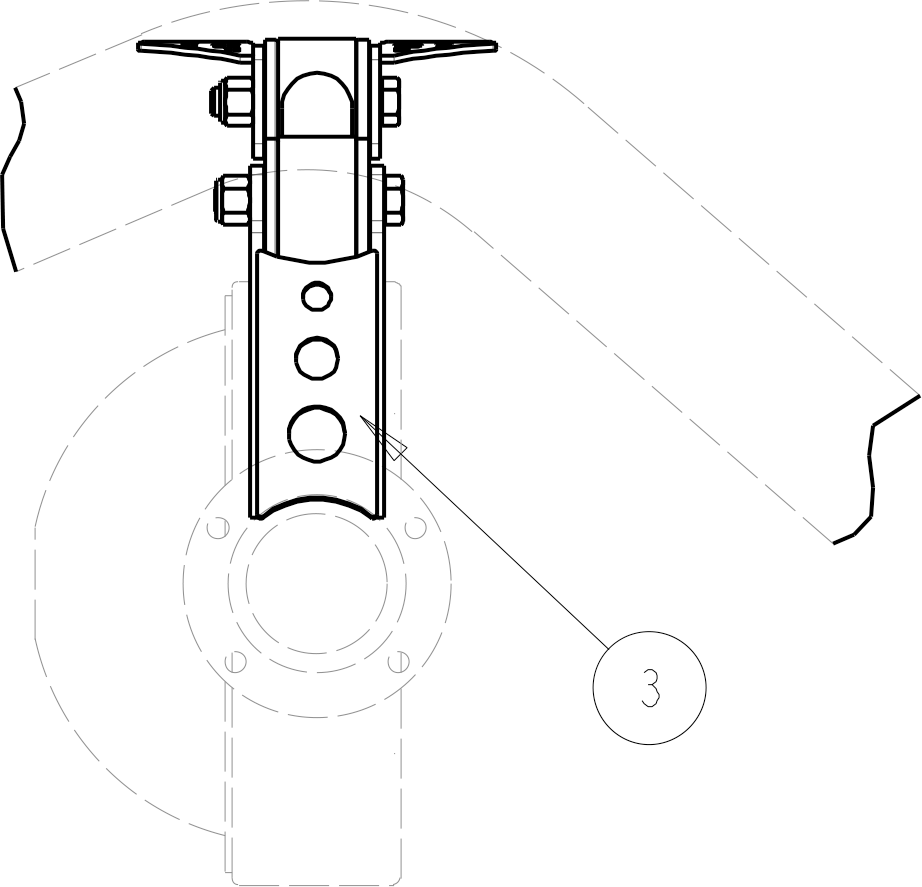

Panhard Bar Bracket Cap PL |
| 4 |
2 |
40-2181 |
Panhard Bar Mounting Bracket |
| 5 |
2 |
60-353 |
Frame Tab |
| 6 |
2 |
13-351-1 |

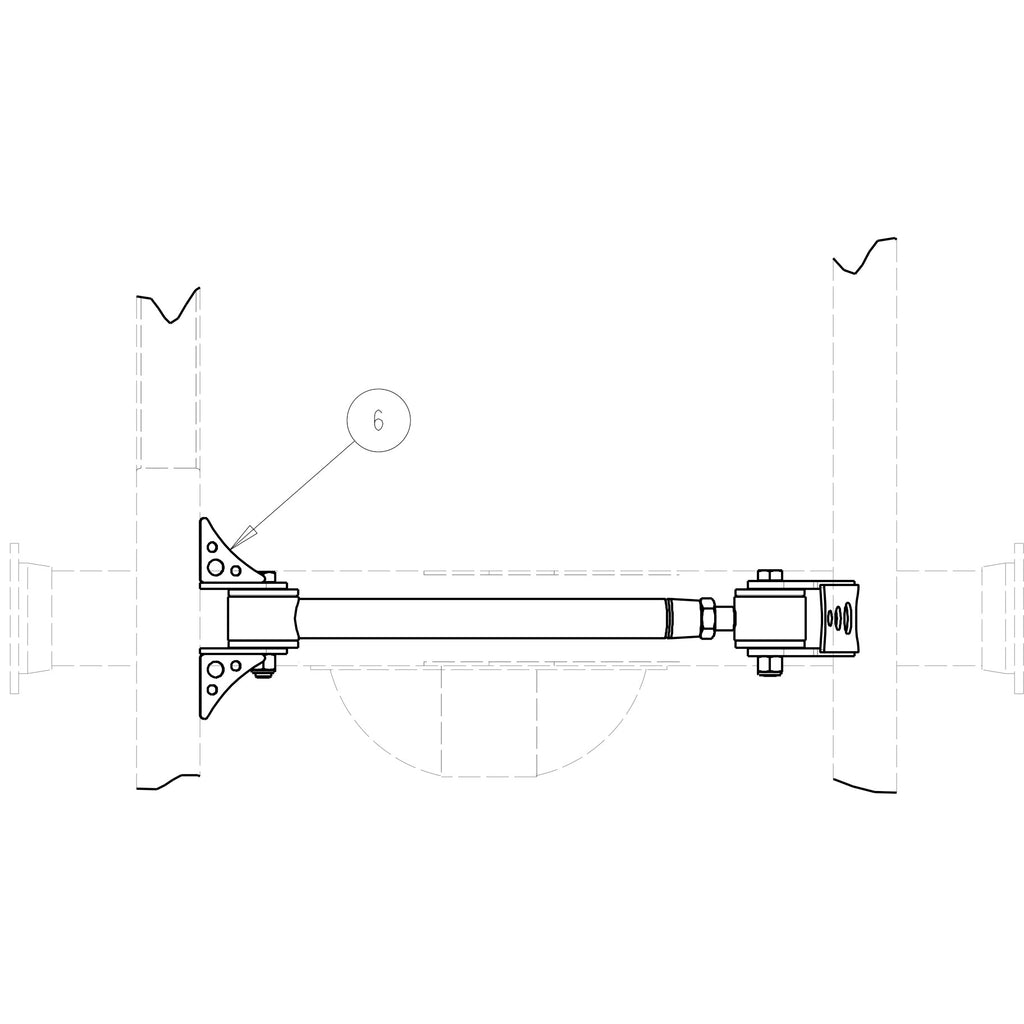

Roll Cage Gusset |
| 7 |
1 |
63-098 |
Threaded Tube End |
| 8 |
4 |
40-603-03 |
Poly Bushing (ES2134) |
| 9 |
2 |
875X188CMX1.88 |
Steel Sleeve |
| 10 |
2 |
65-050 |
1/2 x 3" LG Bolt |
| 11 |
2 |
65-135 |
1/2 Nylok Nut |
| 12 |
1 |
65-120 |
3/4 Jam Nut |
Specifications
Adjustable Street Rod Panhard Bar Kit
| For Make | |
|---|---|
| For Model | |
| For Year |
