Description

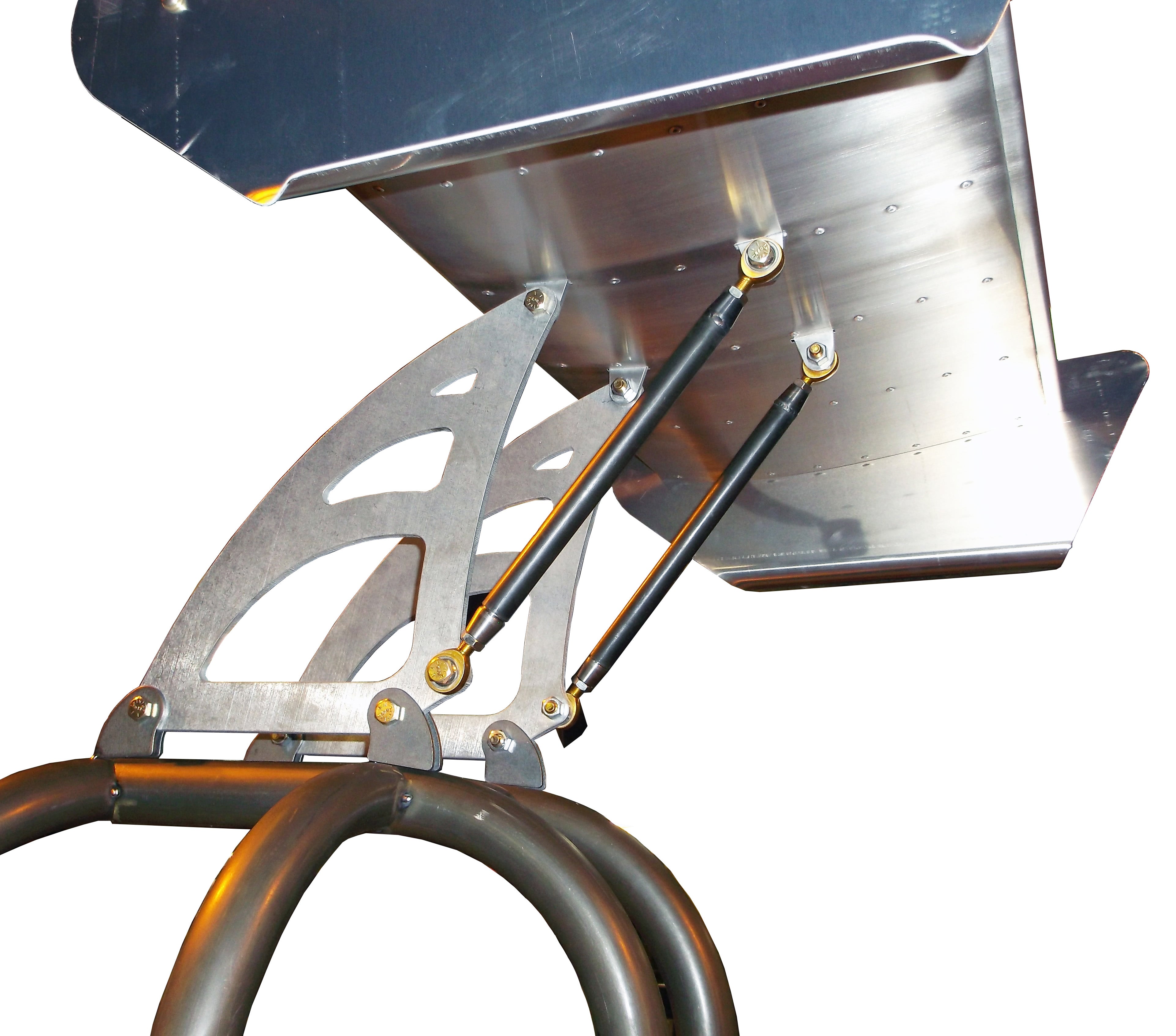

- Mounts wing 6? to 8? above roll cage.
- Aluminum plates bolt to brackets welded on roll cage.

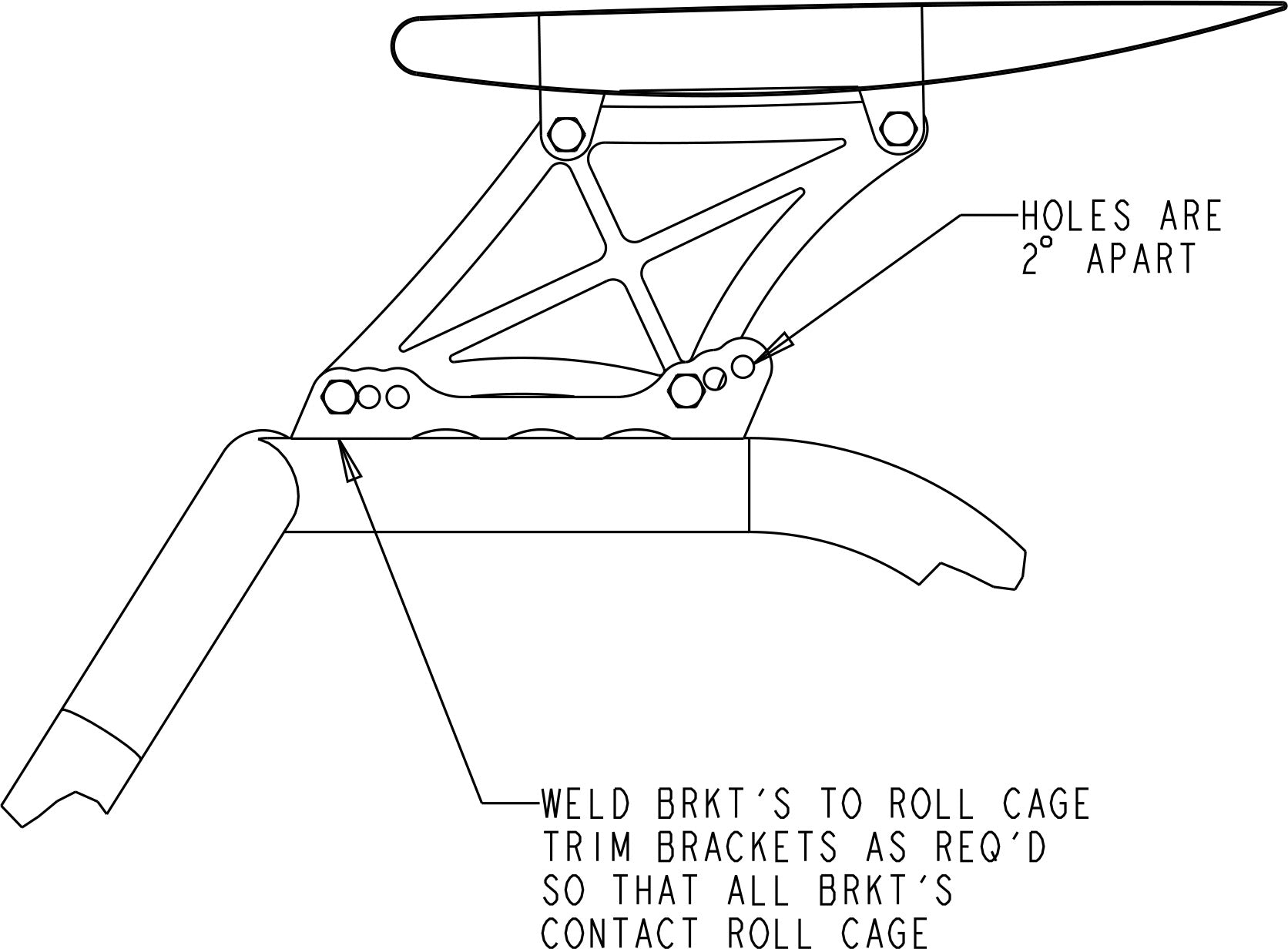

- 3 sets of holes, 2 degrees apart.
- Holes are 3/8? diameter, 5-3/4? center to center, 4-1/2? vertical centers between cage mount holes.
- Wing mounts to holes
Download Product Data Sheet

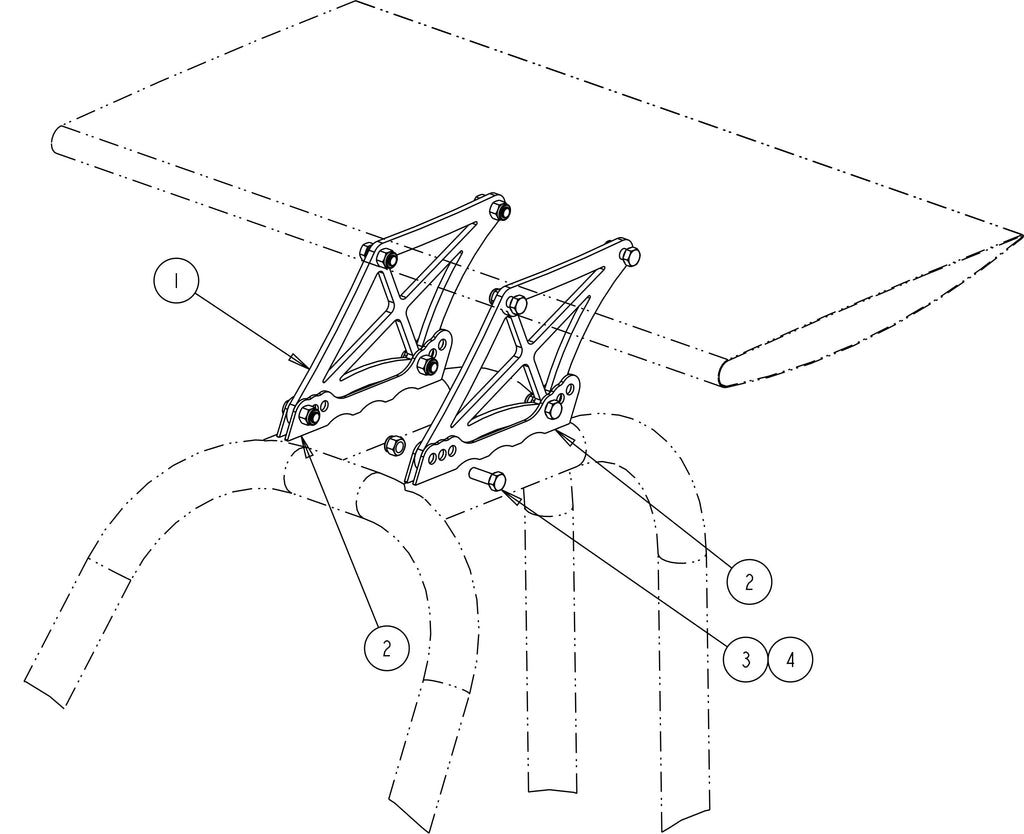

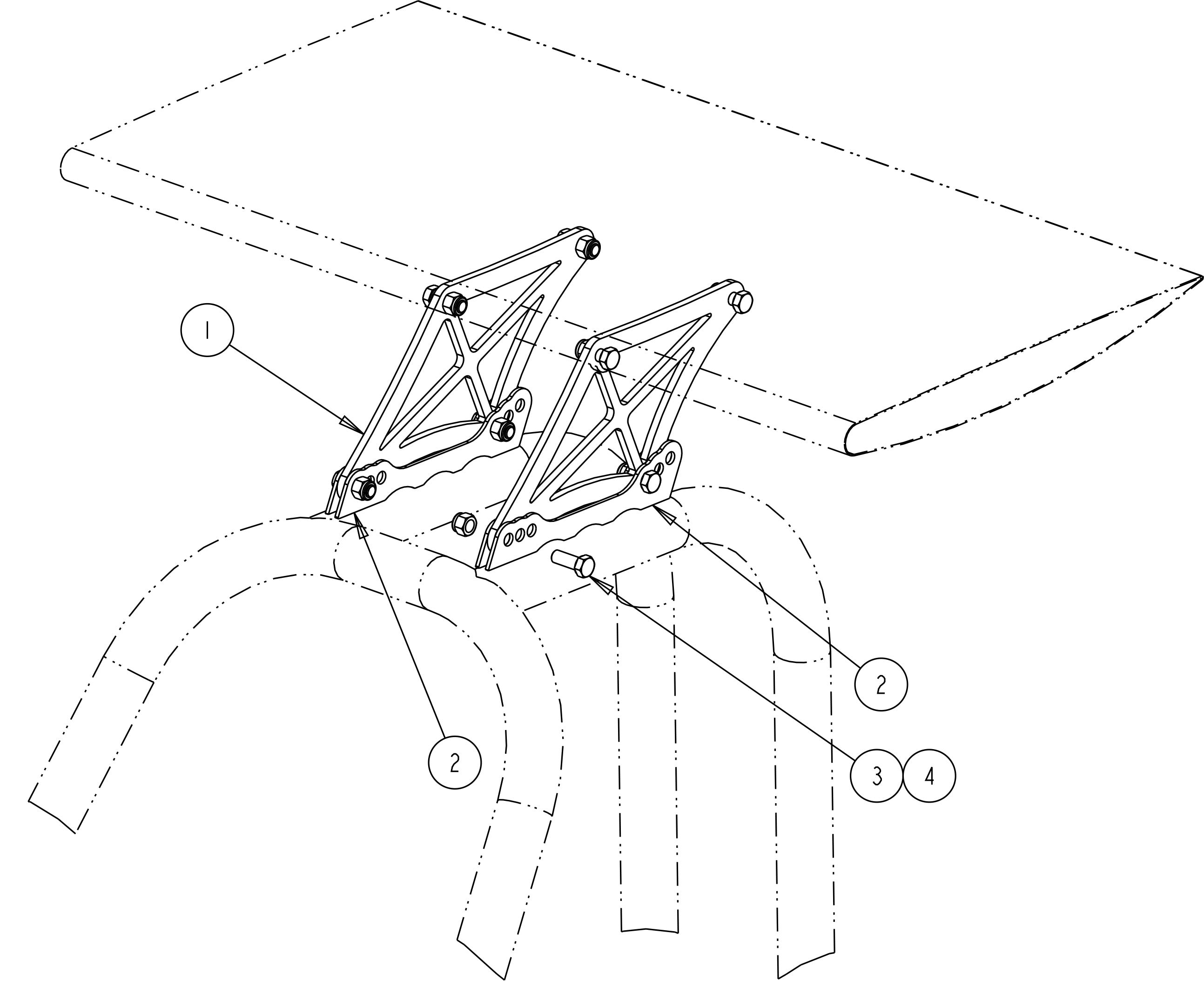

Bill of Materials
| Item | Qty |
Part Number |
Description |
| 1 | 2 | 06-030-01 | Altered Wing Mounting Plate |
| 2 |
4 |
06-030-02 |
Altered Wing Mounting Bracket |
| 3 |
8 |
65-024 |
3/8" x 1" Bolt |
| 4 |
8 |
65-132 |
3/8" Nylock Nut |
Specifications
Altered Wing Mount Kit - Aluminum Plate
| For Make | |
|---|---|
| For Model | |
| For Year |
