Description

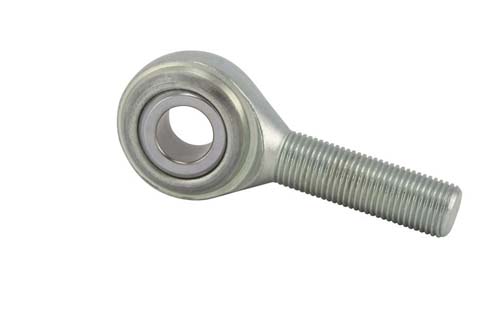

ML8CR - RBC Heim Rod End Bearing - Standard Series M CR, Male, 2 Piece - Metal to Metal
| Thread Size | 1/2 |
| Ball Material | Plated Hardened Carbon Steel |
| Threads per Inch | 20 |
| Head Diameter | 1 5/16 in |
| Static Load Rating [Max] | 9000 lbf |
| Right / Left Hand | Left Hand |
| Housing Width | 1/2 in |
| Length Through Bore | 0.625 in |
| Housing Material | Carbon Steel Plated for Corrosion Resistance |
| Lube Fitting | w/o Lube Fitting |
| Ball Flat Dia. | 45/64 in |
| Ball Dia. | 15/16 in |
| Liner | N/A |
| Grade | Commercial |
| Insert Material | N/A |
| Misalignment Range | ±6° |
| Lubrication | Non-Relubricatable |
| Bore Size | 0.500 in - 1/2 in |
| Bearing Type | Plain Bearing |
| Thread Type | UNF |
| Thread Pitch | N/A |
| Weight | 0.24 LB |
| EAN or UPC | 637400158354 |
Specifications
1/2" Left Hand Male Spherical Rod End
| For Make | |
|---|---|
| For Model | |
| For Year |
