Description
RBC Heim Rod End Bearing - Standard Series M CR, Male, 2 Piece - Metal to Metal
Ball Diameter
1.312 in
Ball Material
52100 Alloy Steel
Bore Diameter
0.7500 in
Finish Coating
Steel
Grade
Commercial Extra Capacity
Head Diameter
1.7500 in
Head Width
0.687 in
Housing Material
17 mm
Lubrication Type
Non-Lubricatable
Manufacturer Upc Number
637400158392
Max Operating Temperature
250 °F
Overall Height
3.7500 in
Race Material
Steel
Radial Static Load Capacity
14000 lbf
Series
Heim®
Shank Thread Size
.7500-16
Thread Direction
Right Hand
Thread Type
UNF-3A
Weight
0.63 lb
Product Type
Spherical Rod Ends
Specifications

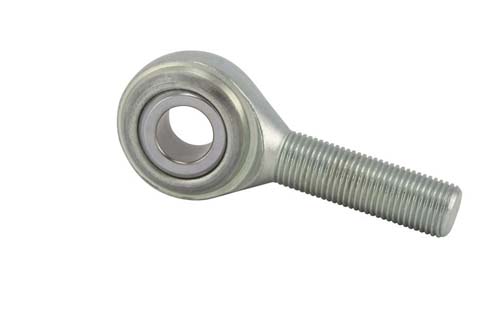

3/4" Right Hand Male Spherical Rod End
| For Make | |
|---|---|
| For Model | |
| For Year |
