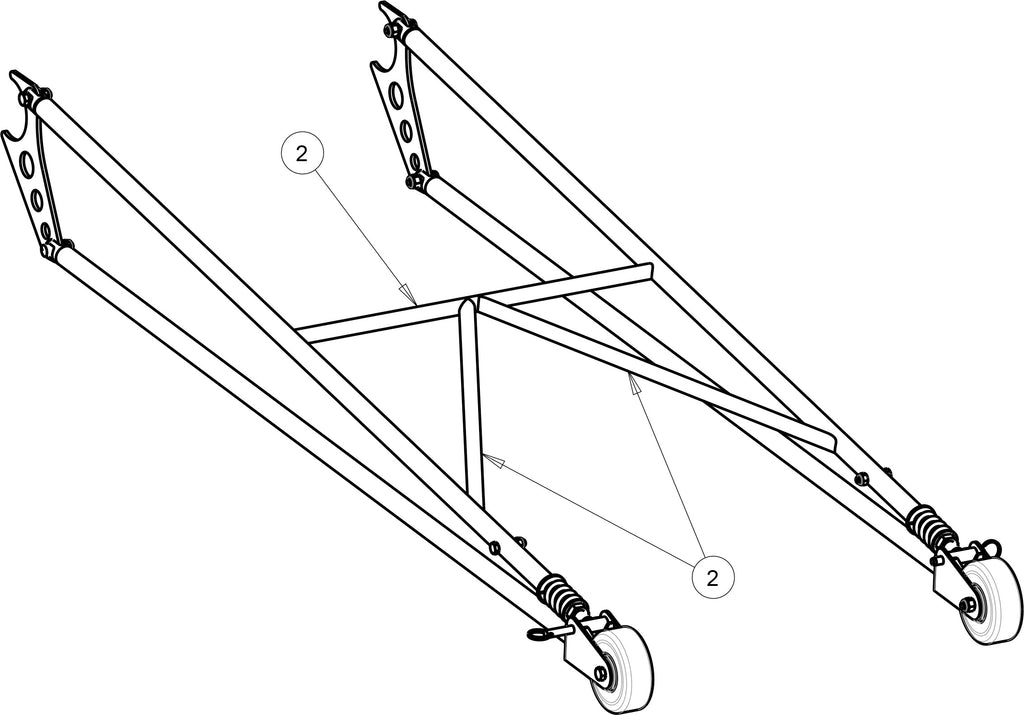

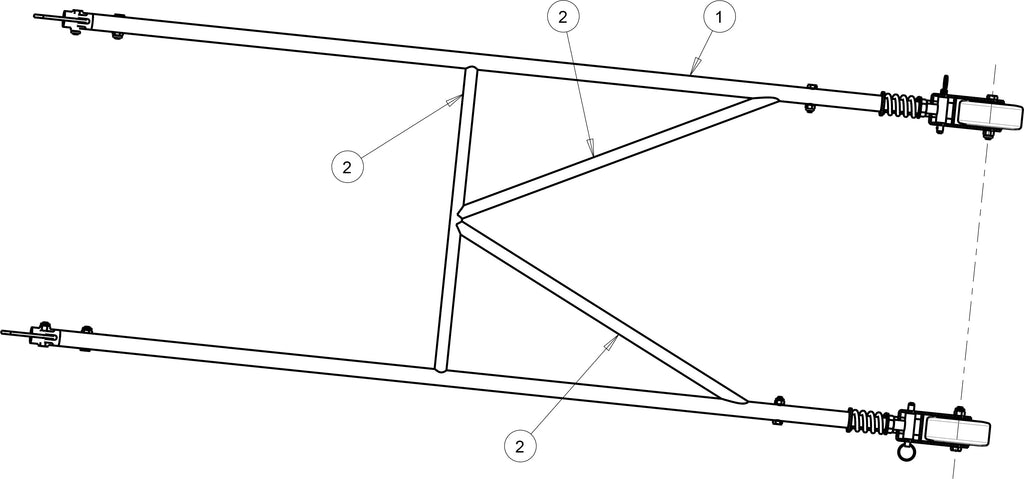

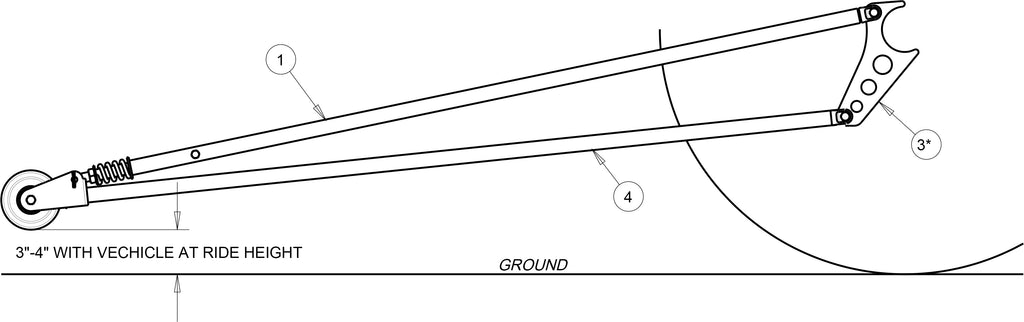

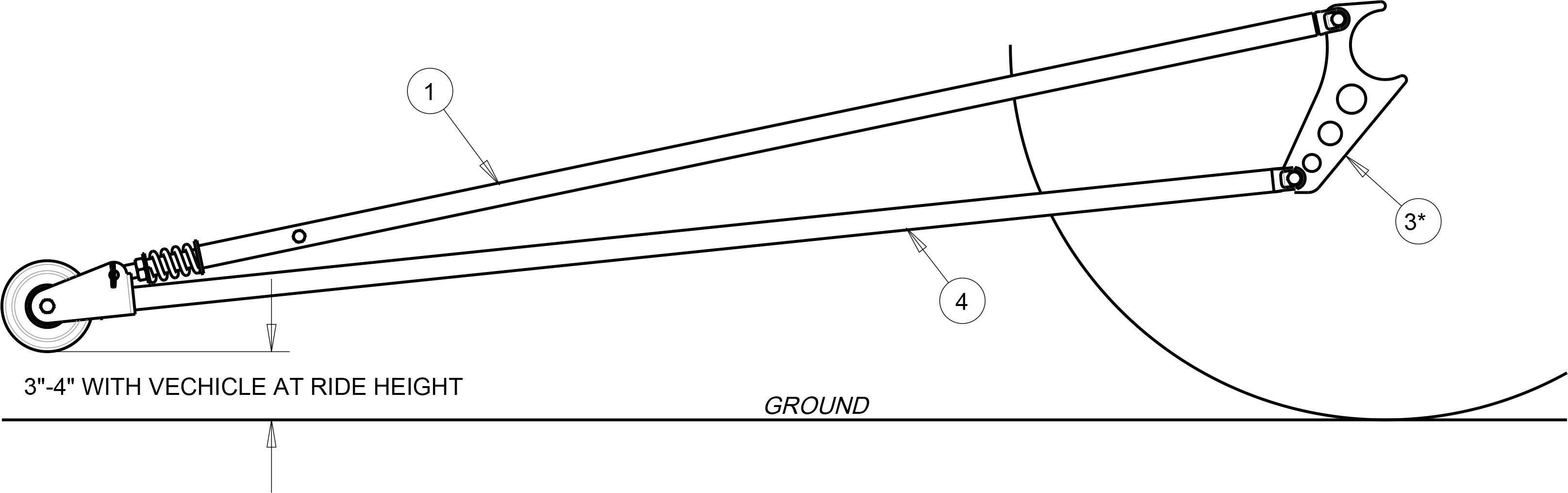

60″ Maximum from center of axle to center of wheel, up to 26″ wide, spring loaded, upper and lower tubes 1″ x .095 chromoly-member 3/4″ x .058 chromoly, .

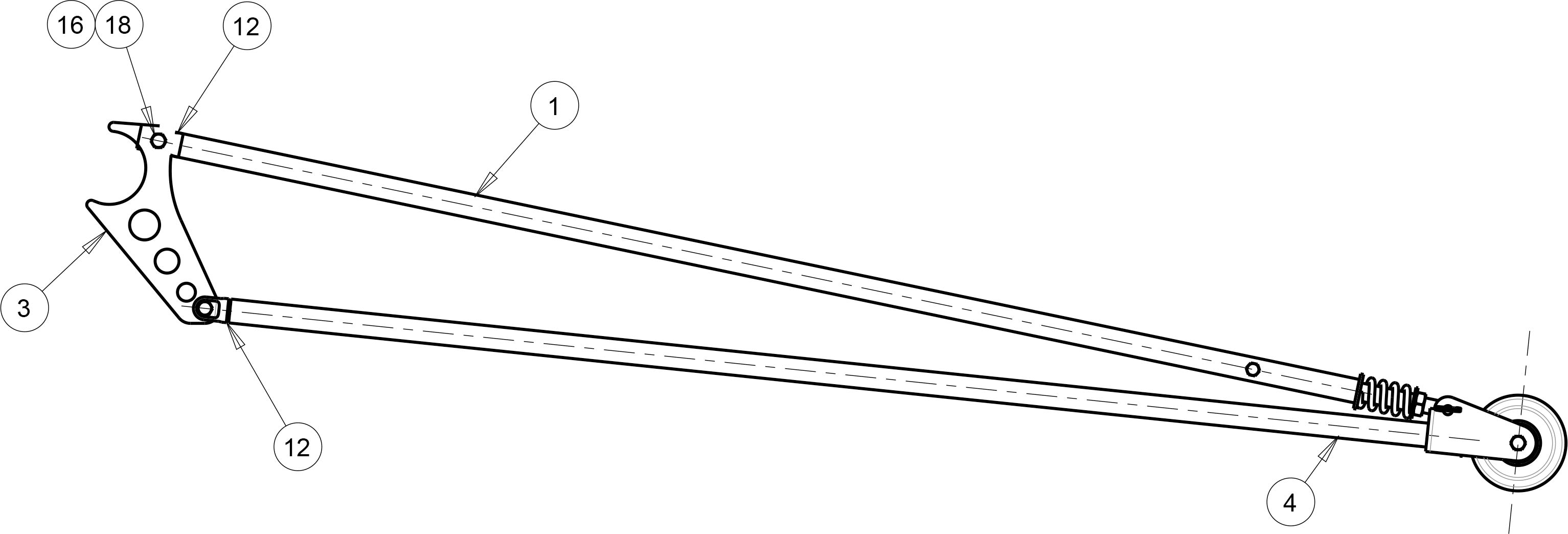

Wheelie wheel bracket already welded to lower bar. Housing brackets for 2 x 3 back brace

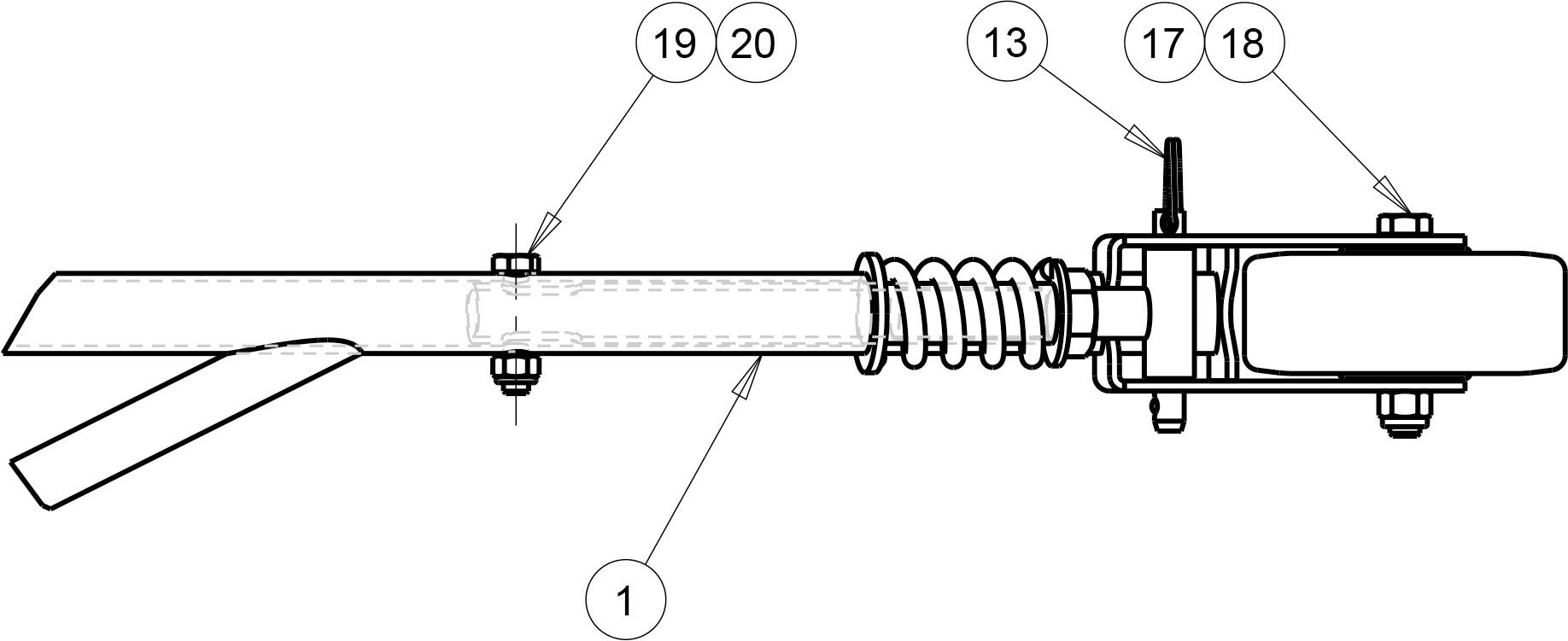

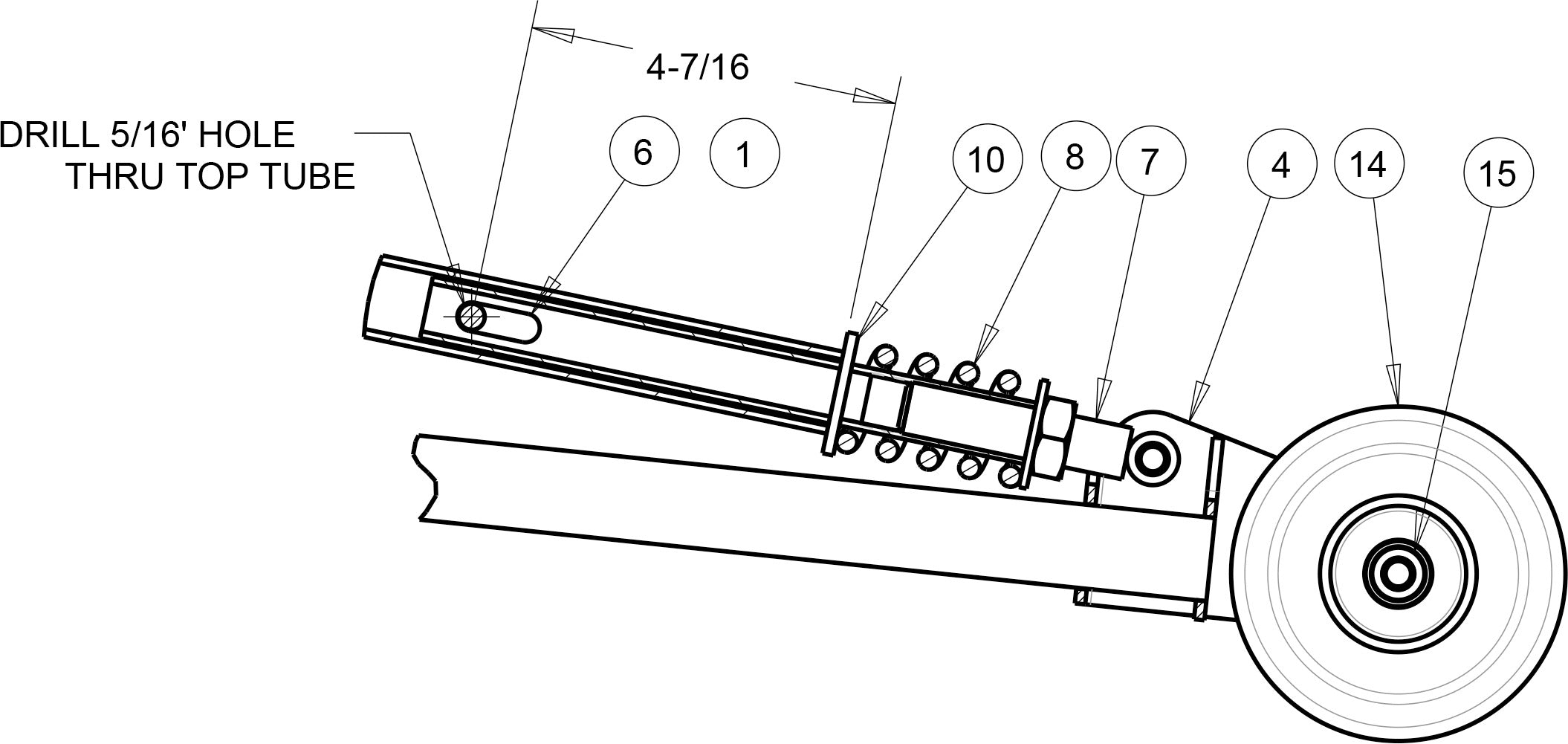

T” Bolt adjuster for wheel height adjustment
Customer needs to cut and weld tubing to set width and length
