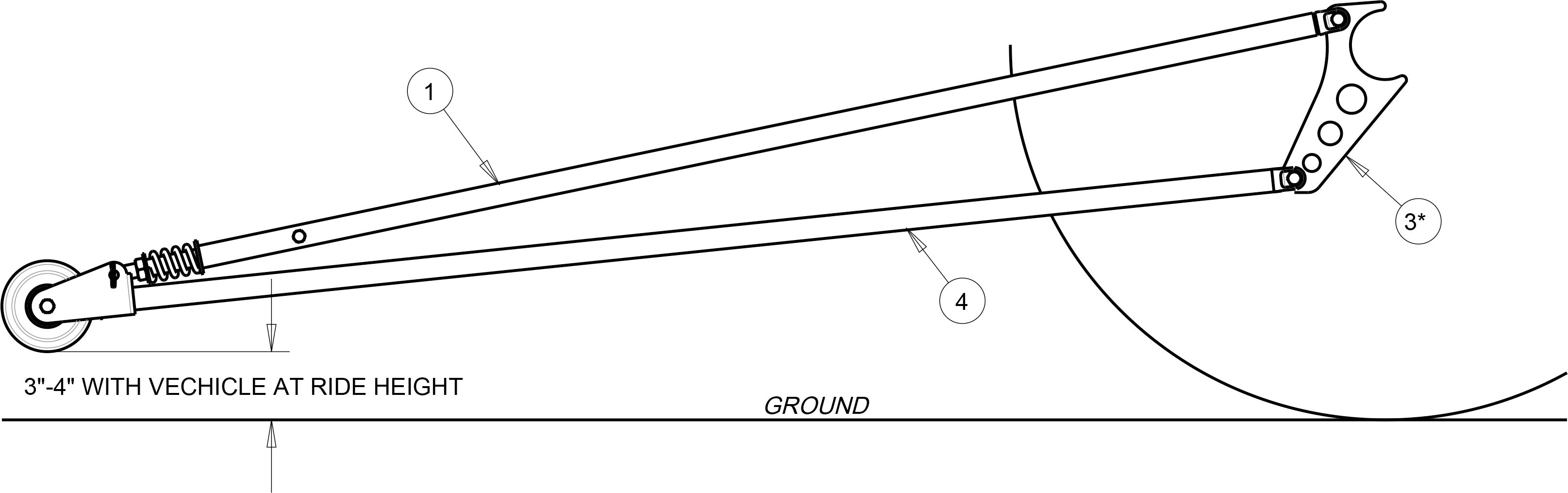

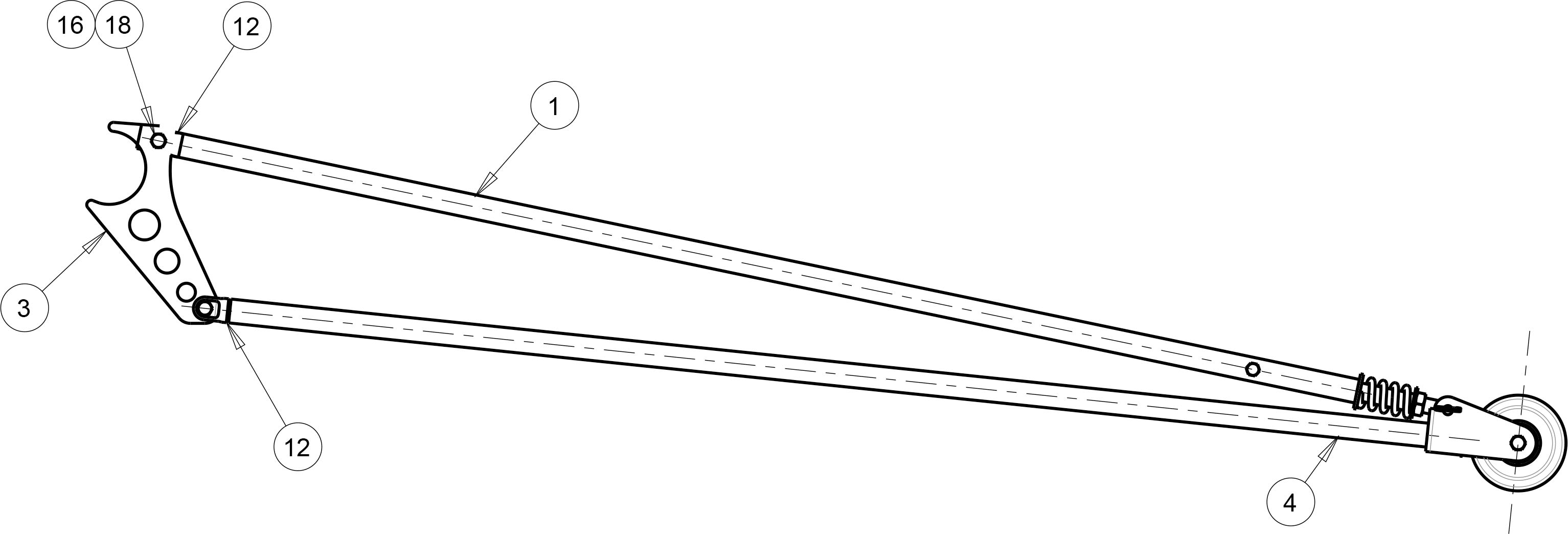

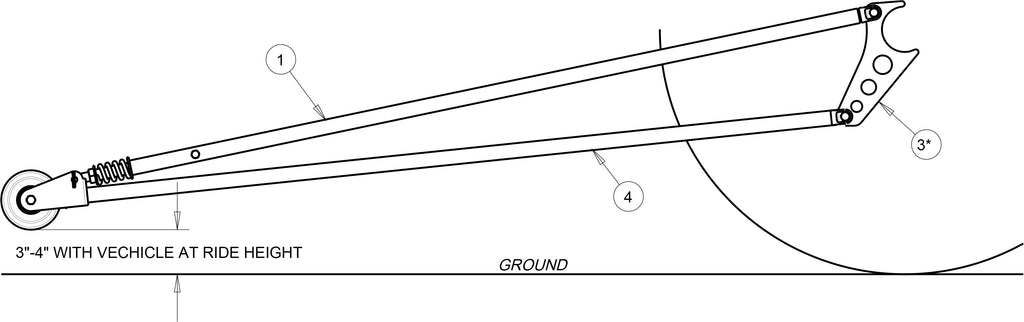

60″ Maximum from center of axle to center of wheel, up to 26″ wide, spring loaded, upper and lower tubes 1″ x .095 chromoly member 3/4″ x .058 chromoly, .

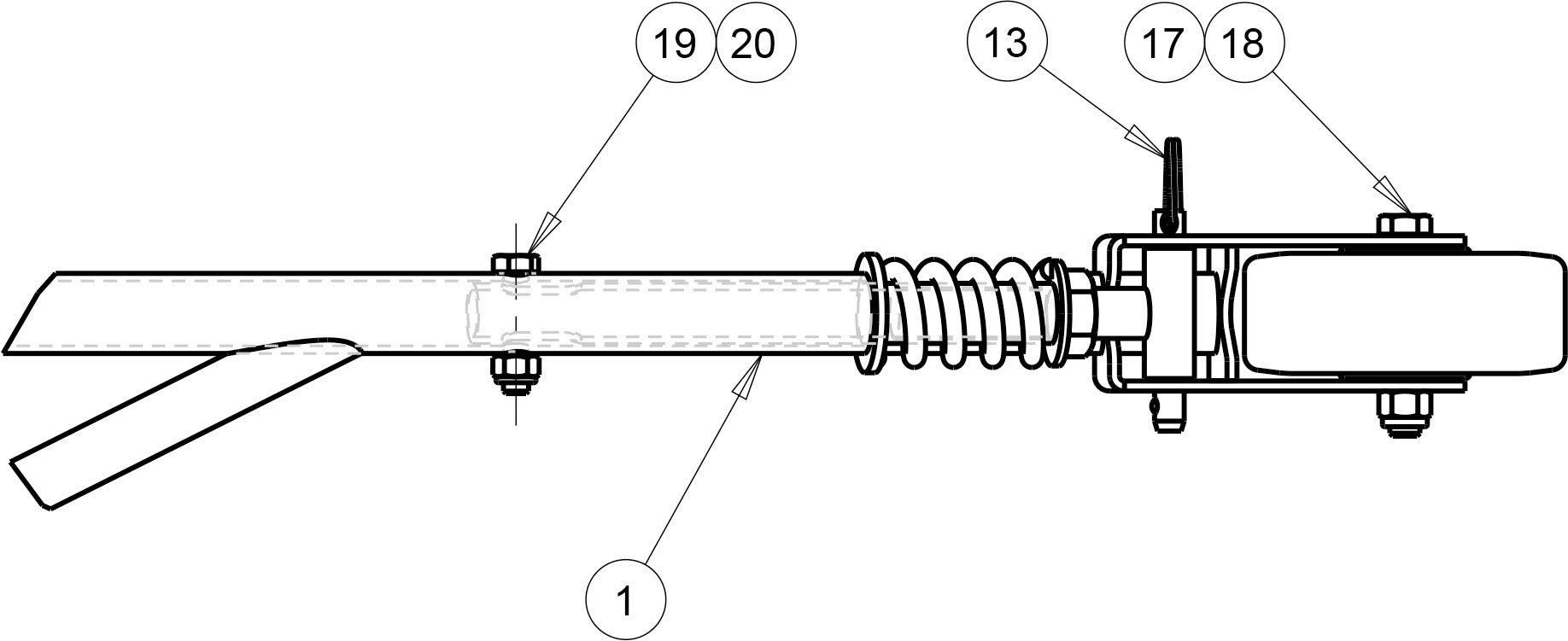

Wheelie wheel bracket already welded to lower bar.
Housing brackets for 3″ diameter tube

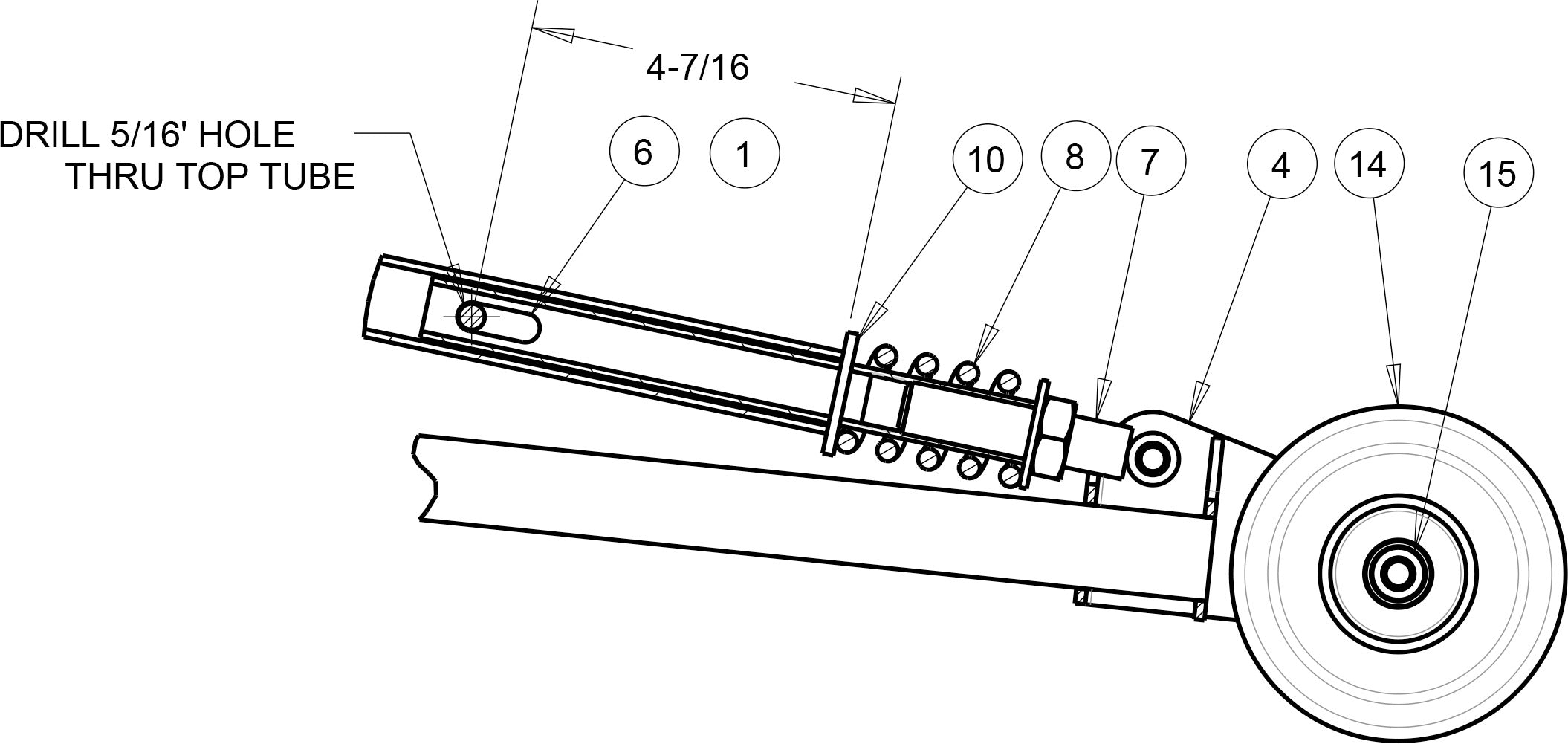

T” Bolt adjuster for wheel height adjustment

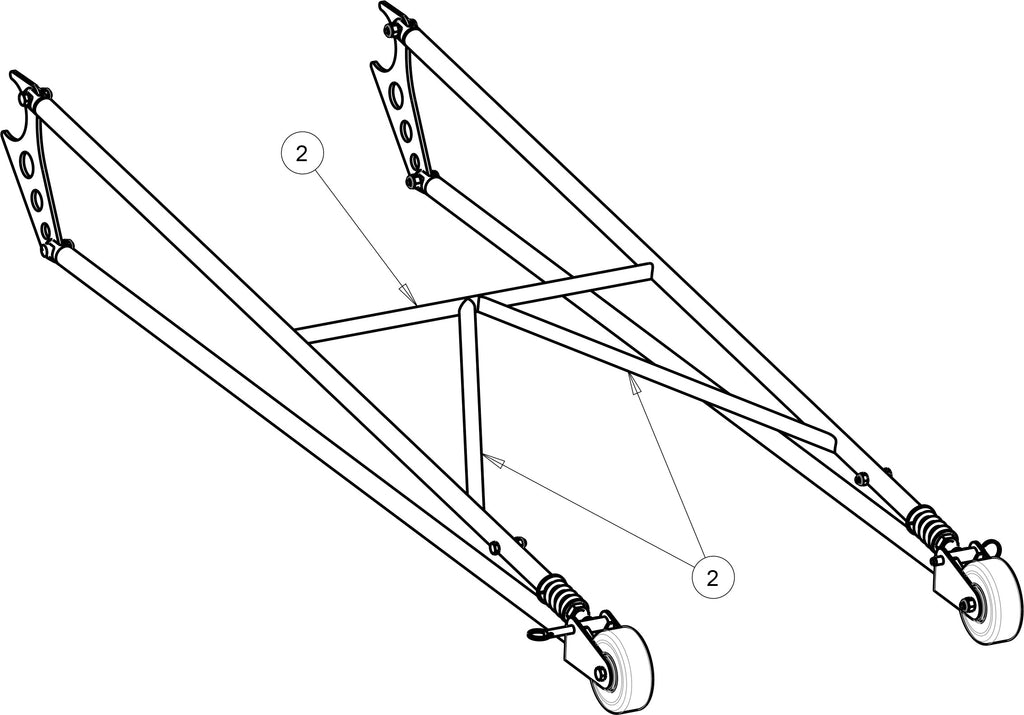

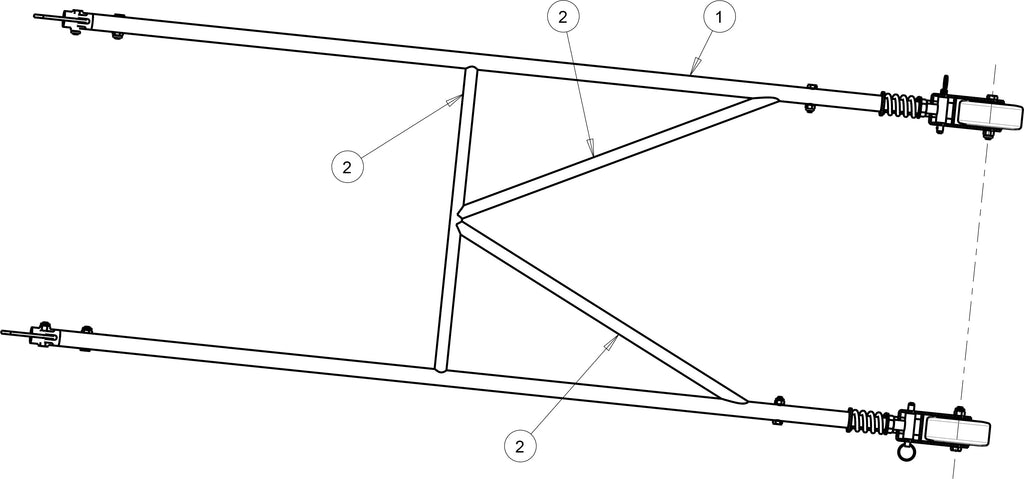

Customer needs to cut and weld tubing to set width and length
